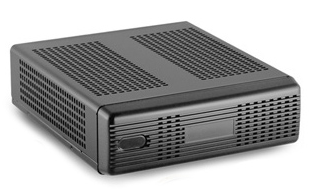

officeBOX M1000

OfficeBOX M1000 is a solid state communications appliance that ensures a very long operational life.

Two mounting options are available: industry standard DIN-RAIL mounting and wall mounting bracket options.

The product comes with a fully tested and optimized Bicom Systems PBXware Business Edition already installed, capable of supporting up to 30 Users/Extensions and 30 concurrent calls using VoIP or PSTN technologies.

Ideal for demanding small offices or home offices that need a professional phone system.






Download PDF Brochure




Features
Expansion Capability Up To
  • T1 24 PRI Ports
  • 4 FXO/FXS Ports
Capacity
  • 30 IP Extensions
  • 4 Analog FXO/FXS Analog Extensions
  • T1 24 PRI Channels
  • 30 Concurrent Calls with G711
  • 2 Conferencing Bridge Included
  • 2 Call Recording Ports
  • 1GB Voicemail Storage Included
Technical Specification
  • Single-Core Intel Atom 1.6 GHz CPU
  • 1GB DDR2 RAM
  • DOM 4GB Storage Internal
  • 10/100/1000 Mbits/sec Network Ethernet Port
  • 60W Power Supply Output Power
Chassis
  • Desk or Wall Mounting
  • 80w output, 12v input DC-DC Power Supplies
  • Fanless (no fan required) Cooling System
Physical & Environment
  • 62 mm (H) x 192 mm (W) x 210 mm (D) Dimensions
  • Black Color(s)
Certified Software
  • Business PBXware Edition(s)
Hardware Warranty
  • 12 months with a 3 year option Hardware Warranty
Supported Hardware
Analog Trunk Devices
  • Sangoma A200
  • Sangoma B600
Digital Trunk Devices
  • Sangoma A101
