maxiRACK

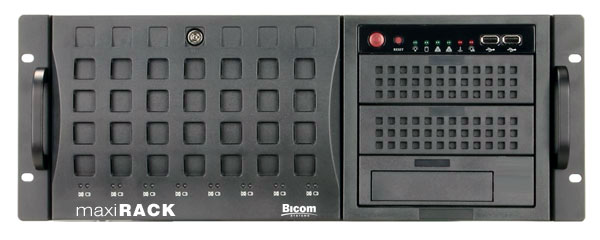

The maxiRACK is a versatile expandable communications appliance fully certified, tested and optimised for PBXware (Business, Call Center or Multi Tenant Edition) or SERVERware (Server or Network Edition) already installed, capable of supporting 1000+ Users/Extensions, up to 48 Analog Extensions and up to 400 Concurrent Calls with G711.

The maxiRACK 4U Quad-Core Xeon® Server features 2 Quad-Core or Dual-Core Intel® Xeon® 5000 Sequence Processors with 1333-MHz System Bus, Hyper-Threading, and Intel Virtualization Technology.

The maxiRACK supports 16 Fully Buffered DIMMs, 2 integrated Gigabit Ethernet adapters, 8 hot-swap SATA drive bays, 3 PCI-X expansion slots, 3 PCIe expansion slots, and FDD. With I/O Acceleration Technology, 7 tool-less expansion slots, and 3 additional 5¼" bays, this 4U Quad-Core Xeon Server offers excellent value and expandability.


Features
Capacity
  • 1000+ IP Extensions
  • 48 Analog Extensions
  • 48 Analog Lines
  • 24 ISDN BRI Lines
  • 120 ISDN PRI Lines
  • 200-400 Concurrent Calls with G711
Chassis
  • 4u Rackmount
  • Floor or Rack Mounting
  • Hot-Swap Redundant 800W AC power supply with PFC Power Supplies
  • Four Fans Cooling System
Physical & Environment
  • 178 mm (H) x 437 mm (W) x 648 mm (D) Dimensions
  • 10 Operating Temperature
  • Rack Form Factor
  • Black face, plated metal body Color(s)
Certified Software
  • Server and Network SERVERware Edition(s)
  • Business, Call Center, and MultiTenant PBXware Edition(s)
Hardware Warranty
  • 3 years with option for 4 hour onsite Hardware Warranty
