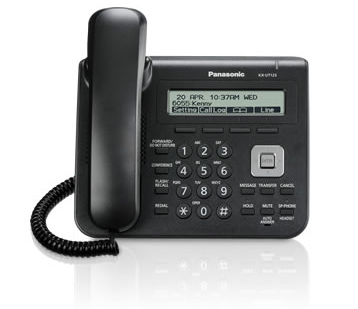

The entry model is compact and easy to install in small spaces. - 2 SIP accounts
- 3 line display for features and for CID/dialled number
- HD Voice (G.722)
- 100 entry phonebook
- 3-way conference call support
- Compatible with Asterisk, Broadsoft and CommuniGate Pro
- 1 x 10/100M ports, PoE
- Low standby power consumption
- XML Application Interface
- Easy operation
- Plug and Play configuration
- Ergonomic recessed button
- Cable concealing back
- Long handset cords
- Non-slip rubber feet
- Wall mounting
| Display | | LCD Display | Monochrome Graphical | | LCD Size | 242 x 55 pixels – 3 lines | | LCD Contrast | 6 levels | | LCD Backlight | On/Auto/Off | | Install Options | | Wall Mount | KX-A432 (optional) | | Power Adaptor | KX-A239 (optional) | | Audio Features | | Handset, Speaker, Headset Volume | 8 levels (includes echo cancellation and distortion prevention) | | Ringtones | 32 | | Ringer Volume | 6 levels + Off | | Headset Port | 2.5 mm | | Audio Codec | G.711a-law / G.711µ-law / G.722 (wideband) / G.729a / G.726 (32K) | | HD Voice | Yes | | Speaker Phone | Yes | | Software Features | | Phone Book (Entries) | 500 | | Call Log Entries | 30 incoming calls + 30 outgoing calls | | Conferencing | 3 parties (within terminal – multi-party dependent on server) | | XML | Yes | | Music on Hold | Supplied by Host Service (PBX / SIP Server) | | IP Features | | SIP Accounts | 2 | | SIP Compatibility | RFC 3261 Standard SIP Server, Asterisk, Broadsoft, CommuniGate Pro, Panasonic IP PBX | | IP Version | IPv4 | | DHCP Client | Yes | | DNS | Yes | | HTTP | Yes | | HTTPS | Yes | | SNTP Client | Yes | | VLAN (802.1q) | Yes | | QoS (DiffServ) | Yes | | Configuration | | Plug & Play Configuration | Server based configuration, TR-069 | | Manual Configuration | Internal web Configurator, Local (LCD based) network configuration | | Interface | | Ethernet Ports | 2 | | Ethernet Interface | 10/100 Mbps | | PoE (Power over Ethernet) | Yes | | Power Consumption | PoE
Standby: 1.8 W (ECO mode off), 1.3 W (ECO mode on)
Talking: 2 W (ECO mode off), 1.5 W (ECO mode on)
Max: 6 W
AC Adaptor
Standby: 1.6 W (ECO mode off), 1 W (ECO mode on)
Talking: 2 W (ECO mode off), 1.5 W (ECO mode on)
Max: 6 W | | Operating Environment | 0 °C - 40 °C (32 °F - 104 °F) | Dimensions
(Width x Depth x Height; handset on cradle, stand attached) | 205 mm x 160 mm x 170 mm | Weight
(with handset, handset cord and stand) | 870 g |  | Type | Brand | Model No. | | Corded | Panasonic | KX-TCA400
KX-TCA430 (for M, X) | RP-TCA400
RP-TCA430 (For NE, RU, X) |
|
