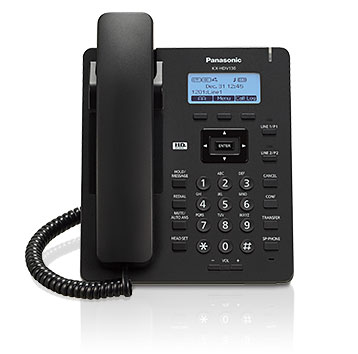

The entry level IP Phone with streamlined functions and the high-definition voice quality. - 2 SIP accounts
- 132 x 64 pixel 2.3 inch graphical LCD with backlight
- HD Voice (G.722)
- Up to 500 phonebook
- 3-way conference call support
- Compatible with Broadsoft UC one
- 2 x 10/100M ports, PoE
- Low standby power consumption
- XML Application Interface
- 2 Programmable keys / Line keys
- Plug and Play configuration
- Changeable angle stand
- Wall mounting (Optional)
| Display | | LCD Display | Monochrome Graphical | | LCD Size | 132 × 64 pixel 2.3 inch Graphical LCD | | LCD Contrast | 6 levels | | LCD Backlight | On/Auto/Off | | Install Options | | Desk Mount Tilt | Yes – 2 positions | | Wall Mount | KX-A440 (optional) | | Power Adaptor | KX-A423 (optional) | | Audio Features | | Handset, Speaker, Headset Volume | 8 levels (includes echo cancellation and distortion prevention) | | Ringtones | 32 | | Ringer Volume | 8 levels + Off | | Headset Port | RJ9 jack | | Electronic Hook Switch Control Port | - | | Audio Codec | G.711a-law / G.711µ-law / G.722 (wideband) / G.729a | | HD Voice | Yes | | Speaker Phone | Yes | | Keys | | Programmable Keys | 2 | | Software Features | | Phone Book (Local) | 500 | | LDAP Remote Phonebook | Yes | | XML Remote Phonebook | Yes | | Call Log Entries | 30 incoming calls + 30 outgoing calls | | Conferencing | 3 parties (within terminal – multi-party dependent on server) | | XML Application | Yes | | Music on Hold | Supplied by Host Service (PBX / SIP Server) | | IP Features | | SIP Accounts | 2 | | SIP Compatibility | RFC 3261 Standard SIP Server, Asterisk, Broadsoft, CommuniGate Pro, Panasonic IP PBX | | IP Version | IPv6 / IPv4 | | DHCP Client | Yes | | DNS | Yes | | HTTP | Yes | | HTTPS | Yes | | SNTP Client | Yes | | VLAN (802.1q) | Yes | | QoS (DiffServ) | Yes | | Configuration | | Plug & Play Configuration | Server based configuration, TR-069 | | Manual Configuration | Internal web Configurator, Local (LCD based) network configuration | | Interface | | Ethernet Ports | 2 | | Ethernet Interface | 10/100 Mbps | | PoE (Power over Ethernet) | Yes | | Power Consumption | PoE
Stand-by: approx. 2.2 W (ECO mode off), 1.9 W (ECO mode on)
Talking: 2.3 W (ECO mode off), 2.0 W (ECO mode on)
Max: 2.8 W
AC Adaptor
Stand-by: 2.0 W (ECO mode off), 1.3 W (ECO mode on)
Talking: 2.1 W (ECO mode off), 1.4 W (ECO mode on)
Max: 2.8 W | | Operating Environment | 0 °C - 40 °C (32 °F - 104 °F) | Dimensions
(Width x Depth x Height; excluding the handset, stand attached) | High position:
167 mm x 165 mm x 148 mm
Low position:
167 mm x 173 mm x 115 mm | Weight
(with handset,handset cord and stand) | 691 g |
|
