Enterprise HD IP Phone---Gigabit Color IP Phone

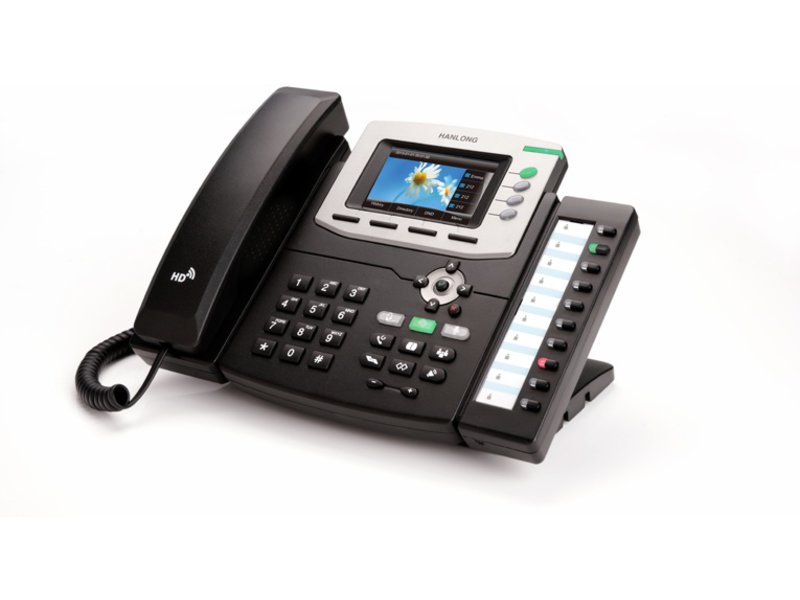

UC862 UC862 is an innovative enterprise-level Color IP Phone that features 4 Line keys, 10 programmable extension keys, 3.5” TFT-LCD with 480*320 pixel. It supports up to 5-way conference.

UC862 is optimized for executive use for major decision makers, administrative assistants and those working with bandwidth-intensive application on collocated PCs. 10 programmable extension keys could be configured as IP PBX features like BLF, SCA, Intercom, Call Pickup, Call Park and many other features. The high-resolution TFT-LCD and HD Voice bring you the lifelike visual and hearing experience.

Feature

• 3.5”TFT-LCD, 480 x 320 pixel, 262K colors

• Dual-port Gigabit Ethernet ports

• 4 VoIP accounts

• Multi-language

• 47 keys including 14 programmable keys

• Support Power over Ethernet(PoE)

• Support Auto-provision via TFTP / FTP / HTTP /HTTPS

Physical Feature

• 3.5”TFT-LCD, 480 x 320 pixel, 262K colors
• Ethernet: Dual-port Gigabit Ethernet ports
• Keys: 47 keys including 14 programmable keys
• WAN Port: 10/100/1000 RJ-45 for Internet
• LAN Port: 10/100/1000 RJ-45 for PC
• Handset: 1 RJ9(4P4C)
• Headset: 1 RJ9(4P4C)
• CPU: 600M
• Adapter output: 5V/1.2A
• Adapter input: 100-240V
• Power consumption: standby - 2.2W / working - 2.4W
• Power over Ethernet(PoE): IEEE 802.3af (Optional)
• Operation temperature: -10 ~ 50℃
• Relative Humidity: 10 ~ 95%
• Weight - Phone: 0.74kg
• Dimension: 290*210*125mm

VoIP Protocol

• SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
• RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone
• Events for SIP/RTP


Voice Codecs

• HD wideband codec:
• G.722. HD Codec, HD speaker, HD handset
• Full-duplex speakerphone with AEC
• G.711 µ-law/A-law, G.723.1, G.726, G.729A/B.
• DTMF(In-Band, RFC2833, SIP Info)
• Acoustic Echo Cancelation(AEC),
• Acoustic Gain Control(AGC)
• Voice Activity Detection(VAD), Comfort Noise insertion


Security

• HTTPS Server/Client
• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS
• VLAN QoS (802.1pq)

Telephone Interfaces

• 4 VoIP Accounts
• Menu-driven user interface, XML Idle Screen, Theme,
• Screen Sleep
• Call hold, Call waiting, Call forward, Call return,
• Redial,Call transfer
• Caller ID display, DND, Auto-answer, 5-Way Conference
• Mute, Speed dial, SMS, Voicemail, Message Waiting
• Indication (MWI) LED, Call history
• BLF/BLA
• Hot-desking, Tone scheme, Volume control
• Ring tone selection/Import/Delete
• Broad and Deep Interoperability
• Soft keys programmable
• Phonebook, Black list XML/LDAP phonebook


Network Protocol

• TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP
• Static/DHCP/PPPoE
• TFTP/DHCP/PPPoE client
• HTTP/HTTPS server


QoS

• Layer 2(802.1Q, 802.1P) QoS
• Layer 3 (ToS, DiffServ, MPLS) QoS
