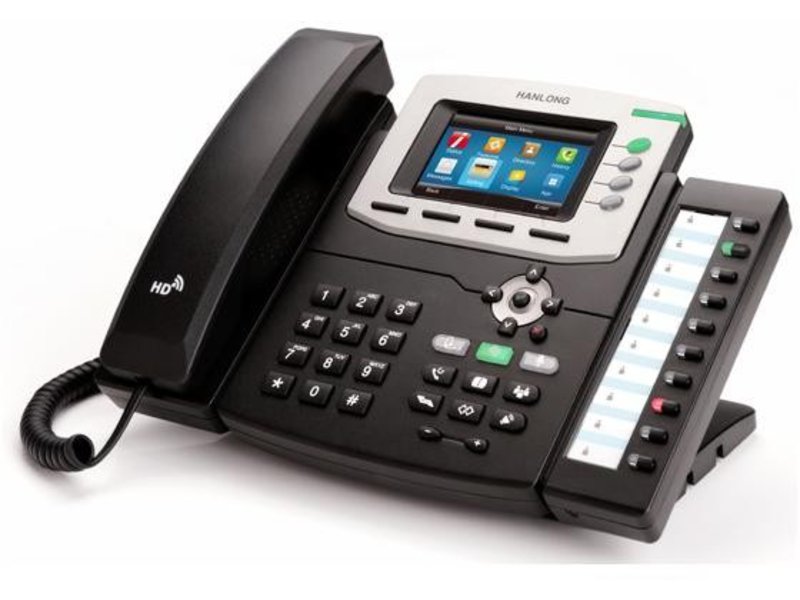

Enterprise HD IP Phone---Color IP Phone UC860P

UC860P offers a business of affordable, next generation SIP phones including wideband audio support, color display, and Dual-port Ethernet with integrated Power over Ethernet.

As Hanlong latest advanced VoIP phone, and with so rich functions, UC860P meets the requirement of the executive and major decision maker, administrative assistants, and those working with bandwidth-intensive applications on colocated PCs. Moreover, armed with HD Audio for both headset and speakerphone, UC860P brings the lifelink audio experience in the colorful envirement.

Feature

• 3.5”TFT-LCD, 480 x 320 pixel, 262K colors

• Dual-port Ethernet ports

• 4 VoIP accounts

• Multi-language

• 47 keys including 14 programmable keys

• Support Power over Ethernet(PoE)

• Support Auto-provision via TFTP / FTP / HTTP /HTTPS

Physical Feature

• 3.5”TFT-LCD, 480 x 320 pixel, 262K colors

• Ethernet: 2 RJ45 (1 Internet+1 PC)

• Keys: 37 keys including 14 programmable keys
• WAN Port: 10/100 RJ-45 for Internet
• LAN Port: 10/100 RJ-45 for PC
• Handset: 1 RJ9(4P4C)

• Headset: 1 RJ9(4P4C)
• CPU: 600M
• Adapter output: 5V/1.2A
• Adapter input: 100-240V
• Power consumption: standby - 1.8W / working - 2.0W
• Power over Ethernet(PoE): IEEE 802.3af (Optional)
• Operation temperature: -10 ~ 50℃
• Relative Humidity: 10 ~ 95%
• Weight - Phone: 0.74kg
• Dimension: 290*210*125mm

VoIP Protocol

• SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP

• RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone

• Events for SIP/RTP


Voice Codecs

• HD wideband codec:

• G.722. HD Codec, HD speaker, HD handset

• Full-duplex speakerphone with AEC

• G.711 µ-law/A-law, G.723.1, G.726, G.729A/B.

• DTMF(In-Band, RFC2833, SIP Info)

• Acoustic Echo Cancelation(AEC),

• Acoustic Gain Control(AGC)

• Voice Activity Detection(VAD), Comfort Noise insertion

Network Protocol

• TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP

• Static/DHCP/PPPoE

• TFTP/DHCP/PPPoE client

• HTTP/HTTPS server

Telephone Interfaces

• 4 VoIP Accounts

• Menu-driven user interface, XML Idle Screen, Theme,

• Screen Sleep

• Call hold, Call waiting, Call forward, Call return,

• Redial,Call transfer

• Caller ID display, DND, Auto-answer, 5-Way Conference

• Mute, Speed dial, SMS, Voicemail, Message Waiting

• Indication (MWI) LED, Call history

• BLF/BLA

• Hot-desking, Tone scheme, Volume control

• Ring tone selection/Import/Delete

• Broad and Deep Interoperability

• Soft keys programmable

• Phonebook, Black list XML/LDAP phonebook

Security

• HTTPS Server/Client

• Transport Layer Security (TLS)

• SRTP (RFC3711), SIPS

• VLAN QoS (802.1pq)

QoS

• Layer 2(802.1Q, 802.1P) QoS

• Layer 3 (ToS, DiffServ, MPLS) QoS
