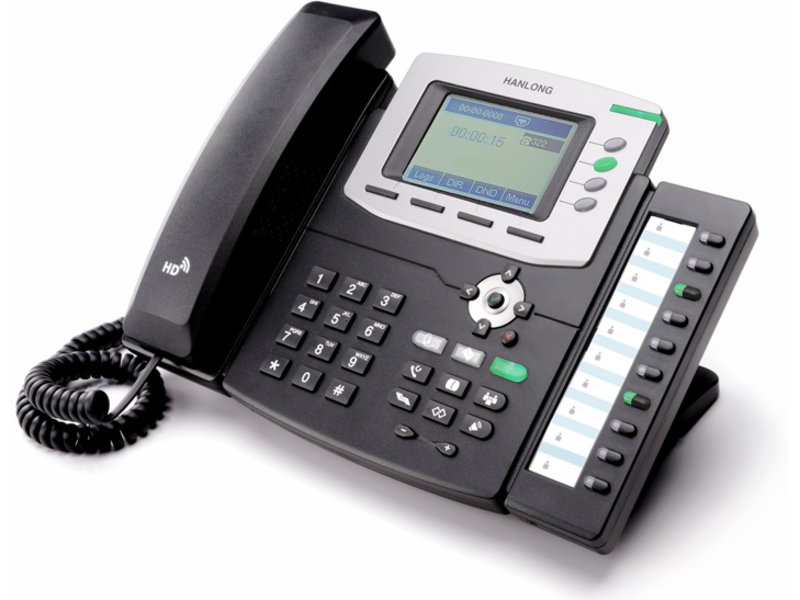

Enterprise HD IP Phone---HD IP Phone UC806P UC806P offers a business of affordable, next generation SIP phones including wideband audio support and Dual-port Ethernet with integrated Power over Ethernet. As Hanlong latest enterprise VoIP phone, and with so rich functions, UC806P makes it easier to hold, transfer, and make a conference. Moreover, armed with HD Audio for both headset and speakerphone, UC806P brings you the lifelink audio experience. Features - 128*96 backlit graphic LCD
- Dual Ethernet ports
- 4 VoIP accounts
- Multi-language support
- 47 keys including 14 programmable keys
- Supports Power over Ethernet(PoE)(Optional)
- Supports Auto-provision via TFTP / FTP / HTTP /HTTPS
Physical Feature - 128*96 backlit graphic LCD
- Ethernet: 2 RJ45 (1 Internet + 1 PC)
- Keys: 47 keys including 14 programmable keys
- WAN Port: 10/100 RJ-45 for Internet
- LAN Port: 10/100 RJ-45 for PC
- Handset: 1 RJ9(4P4C)
- Headset: 1 RJ9(4P4C)
- CPU: 600M
- Adapter output: 5V/1.2A
- Adapter input: 100-240V
- Power consumption: standby - 1.7W / working - 1.9W
- Power over Ethernet(PoE): IEEE 802.3af (Optional)
- Operation temperature: -10 ~ 50℃
- Relative Humidity: 10 ~ 95%
- Weight - Phone: 0.74kg
- Dimension: 290*210*125mm
VoIP Protocol - SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
- RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone
- Events for SIP/RTP
Voice Codecs - HD wideband codec:
- G.722. HD Codec, HD speaker, HD handset
- Full-duplex speakerphone with AEC
- G.711 µ-law/A-law, G.723.1, G.726, G.729A/B.
- DTMF(In-Band, RFC2833, SIP Info)
- Acoustic Echo Cancelation(AEC),
- Acoustic Gain Control(AGC)
- Voice Activity Detection(VAD), Comfort Noise insertion
Network Protocol - TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP
- Static/DHCP/PPPoE
- TFTP/DHCP/PPPoE client
- HTTP/HTTPS server
Telephone Interfaces - 4 VoIP Accounts
- Menu-driven user interface, XML Idle Screen, Theme,
- Screen Sleep
- Call hold, Call waiting, Call forward, Call return,
- Redial,Call transfer
- Caller ID display, DND, Auto-answer, 5-Way Conference
- Mute, Speed dial, SMS, Voicemail, Message Waiting
- Indication (MWI) LED, Call history
- BLF/BLA
- Hot-desking, Tone scheme, Volume control
- Ring tone selection/Import/Delete
- Broad and Deep Interoperability
- Soft keys programmable
- Phonebook, Black list XML/LDAP phonebook
Security - HTTPS Server/Client
- Transport Layer Security (TLS)
- SRTP (RFC3711), SIPS
- VLAN QoS (802.1pq)
QoS - Layer 2(802.1Q, 802.1P) QoS
- Layer 3 (ToS, DiffServ, MPLS) QoS
|
|
