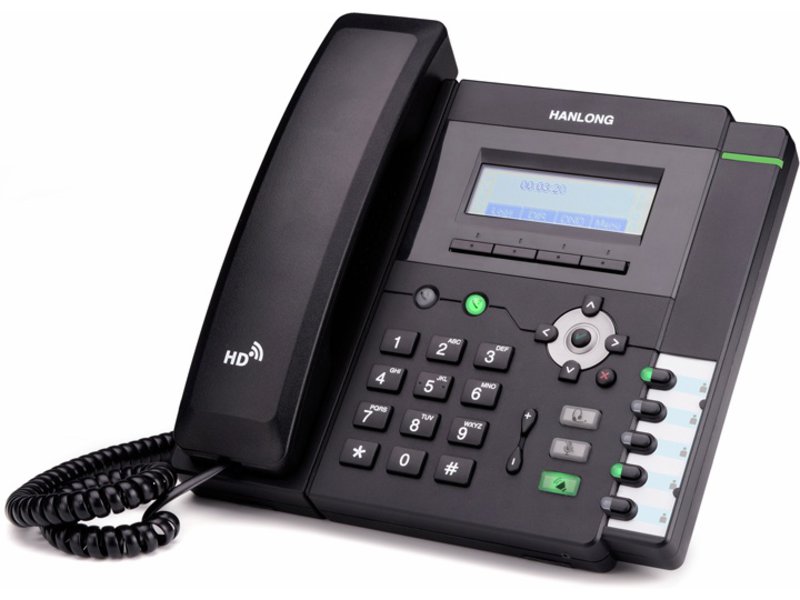

Enterprise HD IP Phone---Entry Level IP Phone UC802P

UC802P delivers superior HD audio quality, rich and leading edge telephony features, all the functions of software are the same as other models. It is a perfect choice for small to medium businesses looking for a high quality, feature rich IP Phone at an affortable cost.

Features

• UC802P wihtout backlit 128*40 graphic LCD
• 2 VoIP accounts
• Multi-language
• Wall Mountable
• 34 keys including 7 programmable keys
• 2 line keys 5 BLF keys 3 function keys
• Support Power over Ethernet(PoE)(Optional)
• Support Auto-provision via TFTP / FTP / HTTP /HTTPS

Physical Feature

• 128*40 graphic LCD
• Ethernet: 2 RJ45 (1 Internet+1 PC)
• Keys: 34 keys including 7 programmable keys

• WAN Port: 10/100 RJ-45 for Internet
• LAN Port: 10/100 RJ-45 for PC
• Handset: 1 RJ9(4P4C)
• Headset: 1 RJ9(4P4C)
• CPU: 600M
• Adapter output: 5V/1.2A
• Adapter input: 100-240V
• Power consumption: standby - 1.7W / working - 1.7W
• Power over Ethernet(PoE): IEEE 802.3af (Optional)

• Operation temperature: -10 ~ 50℃
• Relative Humidity: 10 ~ 95%
• Weight - Phone: 0.48kg
• Dimension: 240*210*100mm

VoIP Protocol

• SIPv2, SDP(RFC 2327), RTP(RFC 1889,1890), RTCP
• RFC 2833 X-NSE Tone Events for SIP/RTP, AVT Tone
  Events for SIP/RTP


Voice Codecs

• HD wideband codec:
• G.722. HD Codec, HD speaker, HD handset
• Full-duplex speakerphone with AEC
• G.711 µ-law/A-law, G.723.1, G.726, G.729A/B.
• DTMF(In-Band, RFC2833, SIP Info)
• Acoustic Echo Cancelation(AEC),
• Acoustic Gain Control(AGC)
• Voice Activity Detection(VAD), Comfort Noise insertion


Security

• HTTPS Server/Client
• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPSVLAN QoS (802.1pq)

Telephone Interfaces

• 2 VoIP Accounts
• Menu-driven user interface, XML Idle Screen, Theme,
• Screen Sleep
• Call hold, Call waiting, Call forward, Call return,
• Redial,Call transfer
• Caller ID display, DND, Auto-answer, 5-Way Conference
• Mute, Speed dial, SMS, Voicemail, Message Waiting
• Indication (MWI) LED, Call history
• BLF/BLA
• Hot-desking, Tone scheme, Volume control
• Ring tone selection/Import/Delete
• Broad and Deep Interoperability
• Soft keys programmable
• Phonebook, Black list XML/LDAP phonebook


Network Protocol

• TCP, UDP, ICMP, RARP, ARP, DNS, NTP,SNTP, STUN, UPnP,SNMP
• Static/DHCP/PPPoE
• TFTP/DHCP/PPPoE client
• HTTP/HTTPS server


QoS

Layer 2(802.1Q, 802.1P) QoS
Layer 3 (ToS, DiffServ, MPLS) QoS
