Processor/Cache
- 2 x Intel Xeon X5355 Quad-Core 2.66GHz
- EM64T
- 8MB (2x 4MB) L2 Smart Cache
- 1333MHz Tray
System Memory
- Eight 240-pin DIMM sockets
- Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
- Dual-branch memory bus
- Memory must be populated in pairs
- 667 / 533MHz FB-DIMM
- 4GB (4 x 1GB) Registered ECC FBD LP 667MHz - Interleaved
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Supports Intel
On-Board Devices
- Intel
- MCH + PXH + ESB
- 667/1066/1333MHz System Bus
- Supports Intel
- Supports memory mirroring + sparin
- ESB2 SATA Controller
- RAID 0, 1 support
- IPMI 2.0
- Intel
- Supports SerDes (Serializer/Deserializer)
- Intel
- ATI ES1000 controller with 16 MB of video memory
- Winbond 83627HF chip
- Clock Generator CK410B chip
Front Panel
- KVM button
- Power On/Off button
- Power LED
- UID / KVM LED
- Network Activity LED
- Fault LED
- SUV (Serial/USB/Video
- KVM Connector
Dimensions
- Height 11.32" (288 mm)
- Width 1.67" (42.4 mm)
- Depth 18.5" (470mm)
- Maximum weight 8.6 lbs (3.9 kg)
|
Drive Bays
- Two 3.5" hot-swap drive bays
I/O Ports
- 1 IDE Slot
- Mezzanine Slot supporting 2-Port InfiniBand Controller
- 1 Front Connector for Supermicro KVM Card
- 2 Power Connectors (to Backplane)
- 1 SIMBL Slot
Operating Environment / Compliance
- Operating Temperature: 10
- Non-operating Temperature: -40
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5 to 95% (non-condensing)
Electromagnetic Compatability (EMC)
- United States / Canada FCC- Emissions (US) Verification
- Europe EN55022
- Europe EN55024
- Europe EN61000-3-2
- Europe EN61000-3-3
- Europe CE
- Germany TUV
Safety Compliance
- United States/Canada UL60950-1
- Europe EN60950-1, CE
System BIOS
- 8Mb Flash EEPROM with Phoenix
- Plug and Play (PnP)
- SMBIOS 2.3
- DMI 2.1
- PCI 2.2
- ACPI 1.0
- USB Keyboard support
- Hardware BIOS Virus protection
|

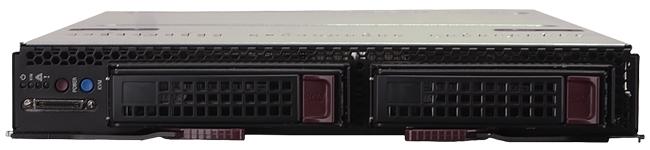

zoom in
